Description

Applicable Models: It is suitable for Claas Dominator 140, Dominator 150, Dominator 68, Dominator 68R, Dominator 68 SR, Dominator 78 combine harvesters, as well as Claas Conspeed 4 R 70 – S, 4 R 75 – S, 4 R 80 – SL combine harvesters. Additionally, it is applicable to Claas 4 R 70 – SL, 4 R 75 – S, 4 R 75 – SL, 4 R 80 – S, 4 R 80 – SL corn heads.
Function: It is a spare part for the conveyor of Claas combine harvesters, which is involved in transporting the grain mass from the header to the threshing drum. It is used to replace worn – out or damaged parts during repair operations.

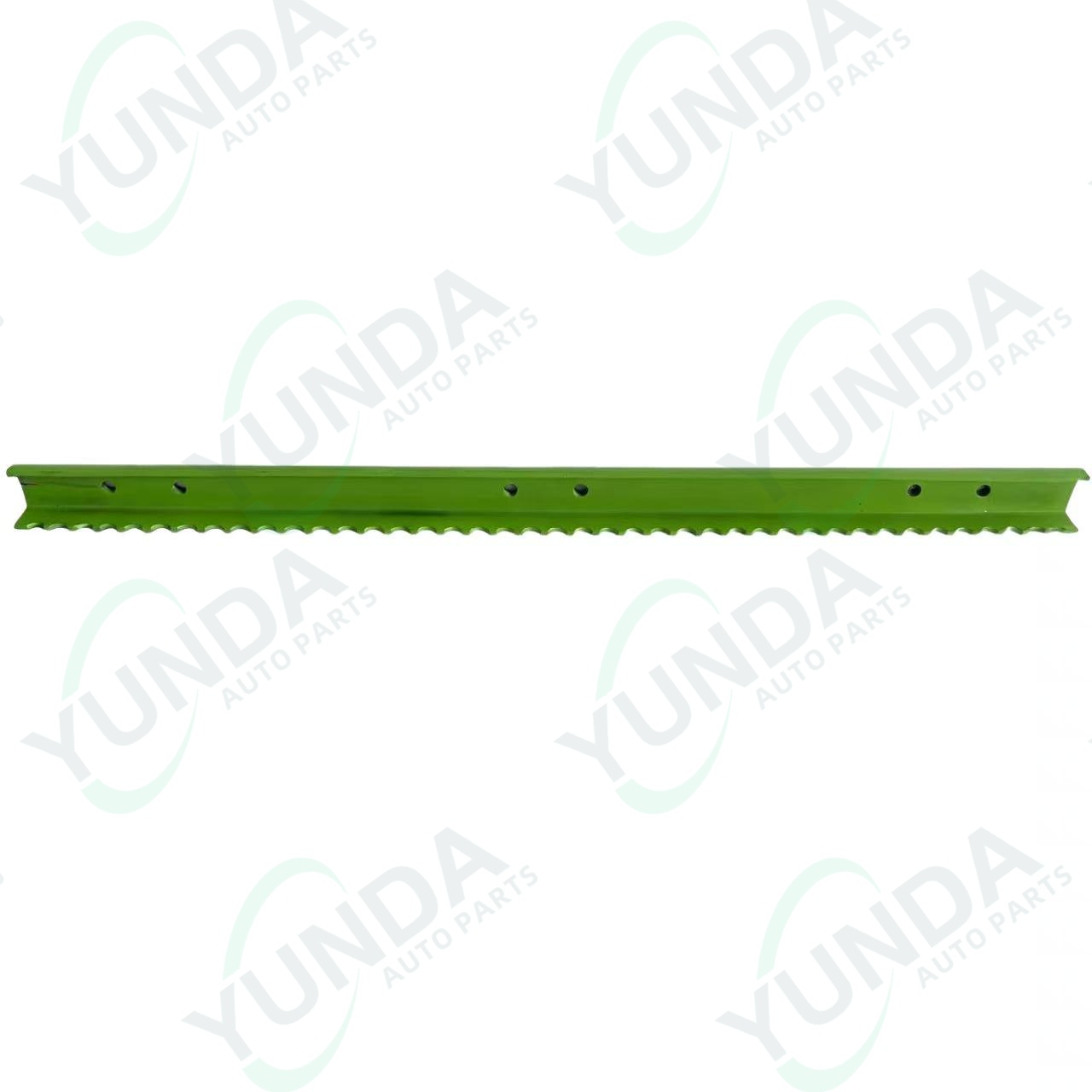

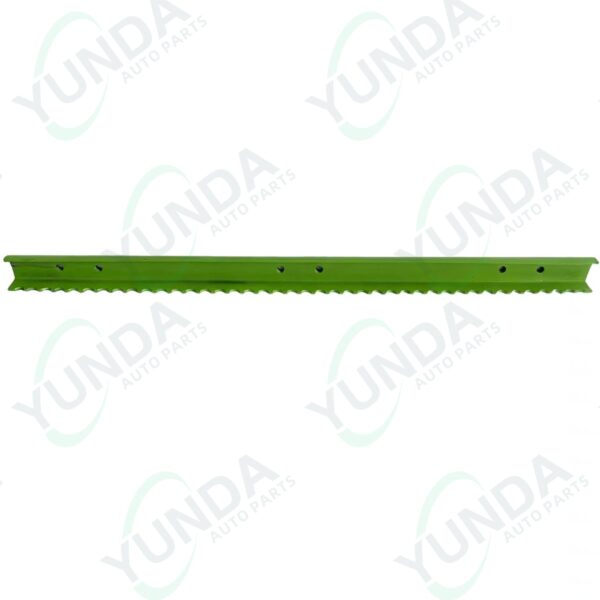

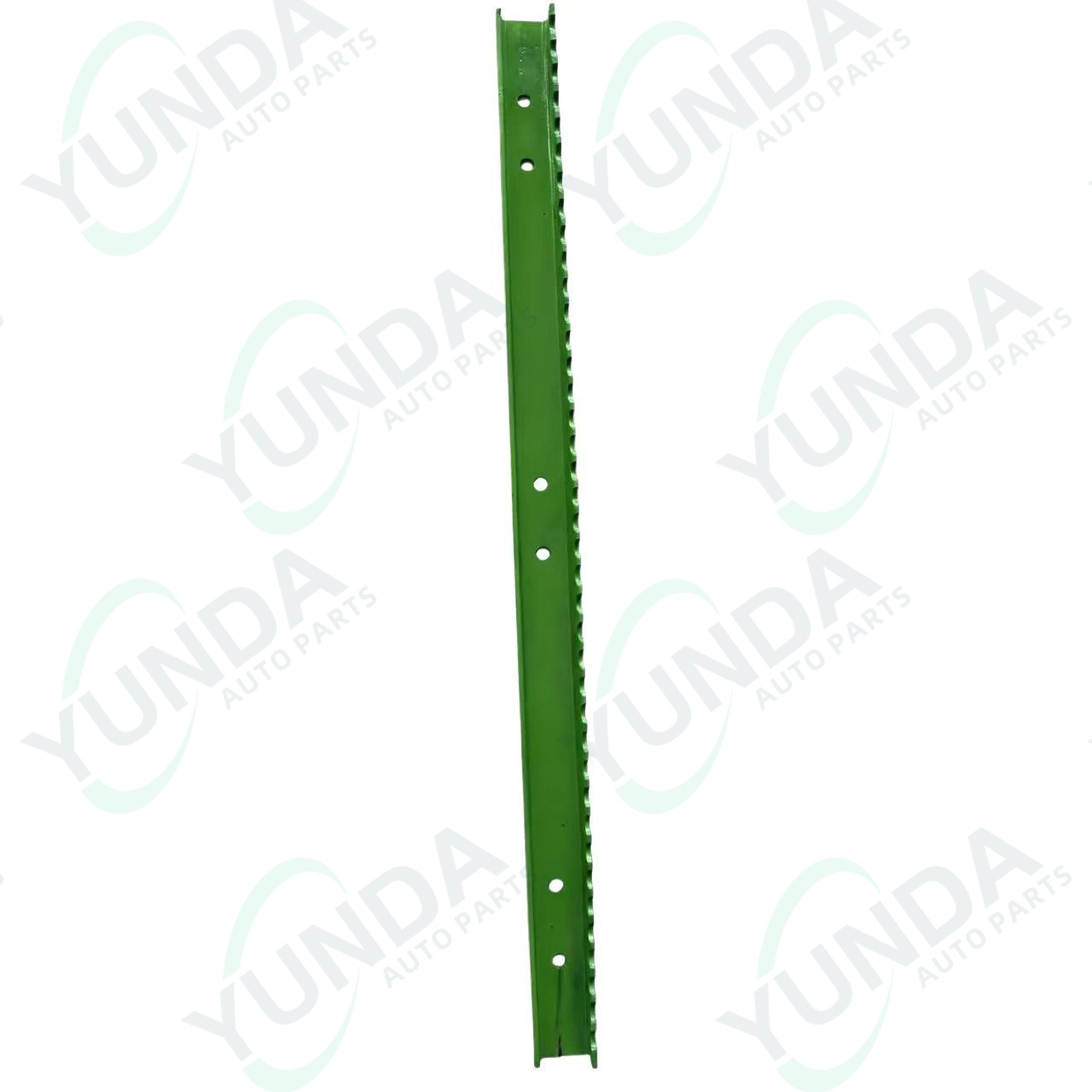

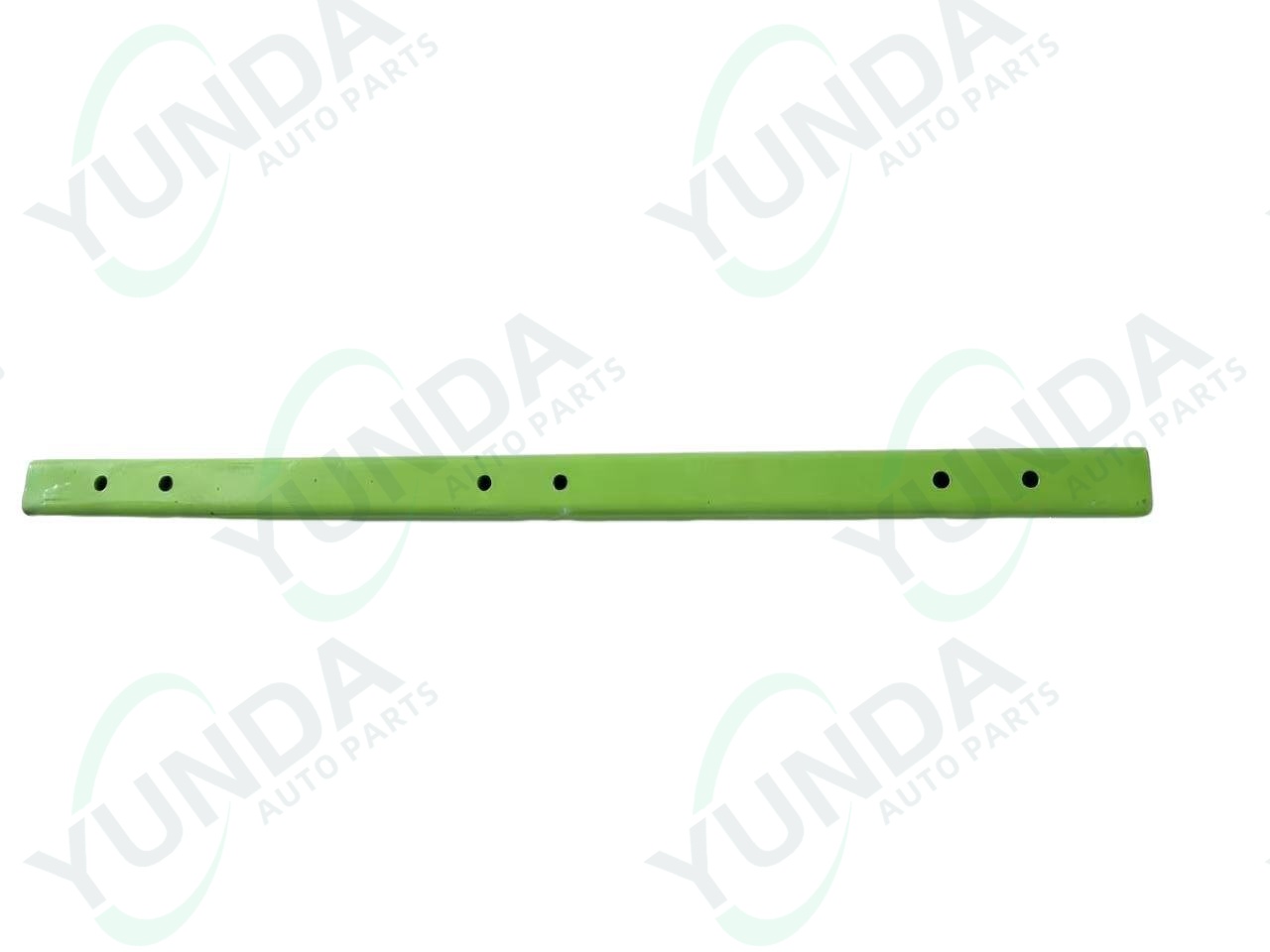

Product Characteristics: It is a long U – shaped steel component made by bending, with a row of fixing openings drilled at its base. One of the shelves of the guide plate is serrated to ensure a firm hold of the grain mass.
Parameters: It weighs 1.73 kg, has 6 mounting holes with a diameter of 11 mm each. The length is 862 mm, the height is 24 mm, the distance between mounting holes is 272 mm and 57 mm, the width is 46 mm, and the material thickness is 3.5 mm.
OEM Numbers: 0006452321, 000645232, 645232.1, etc.
