Description
Definition:

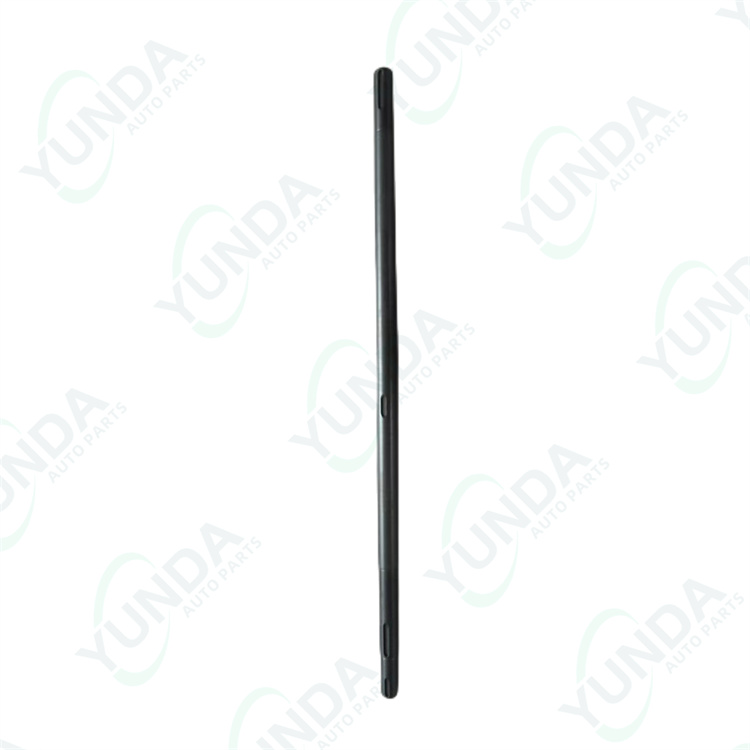

The Beater Shaft (part number 0007255371) is a core rotating component within the cleaning shoe system of a Claas combine harvester. It is a sturdy steel shaft equipped with specially designed beater blades or paddles, mounted transversely beneath the straw walkers and above the cleaning sieves in the grain cleaning area.
Function and Operation:
-
Primary Purpose: To agitate and spread the threshed material (the straw and chaff mixture) evenly across the width of the cleaning sieves, facilitating efficient grain separation.
-
Principle of Operation: As the shaft rotates at high speed, its blades aggressively fluff and toss the incoming mat of straw from the straw walkers. This action breaks up the mat, allowing the cleaning fan’s airflow to effectively separate the heavier grain from the lighter chaff, which then falls through the sieve openings.
-
Load Handling: The shaft is subjected to significant torsional forces, abrasive wear from crop material, and impact loads.
Significance in the System:
The precise and reliable operation of the beater shaft is critical for minimizing grain loss and achieving a clean sample in the grain tank. It is essential for maintaining high throughput and overall harvesting efficiency. Wear or failure of this component directly leads to poor separation, increased grain loss, and reduced cleaning performance.
