Description
Part Number: 118344

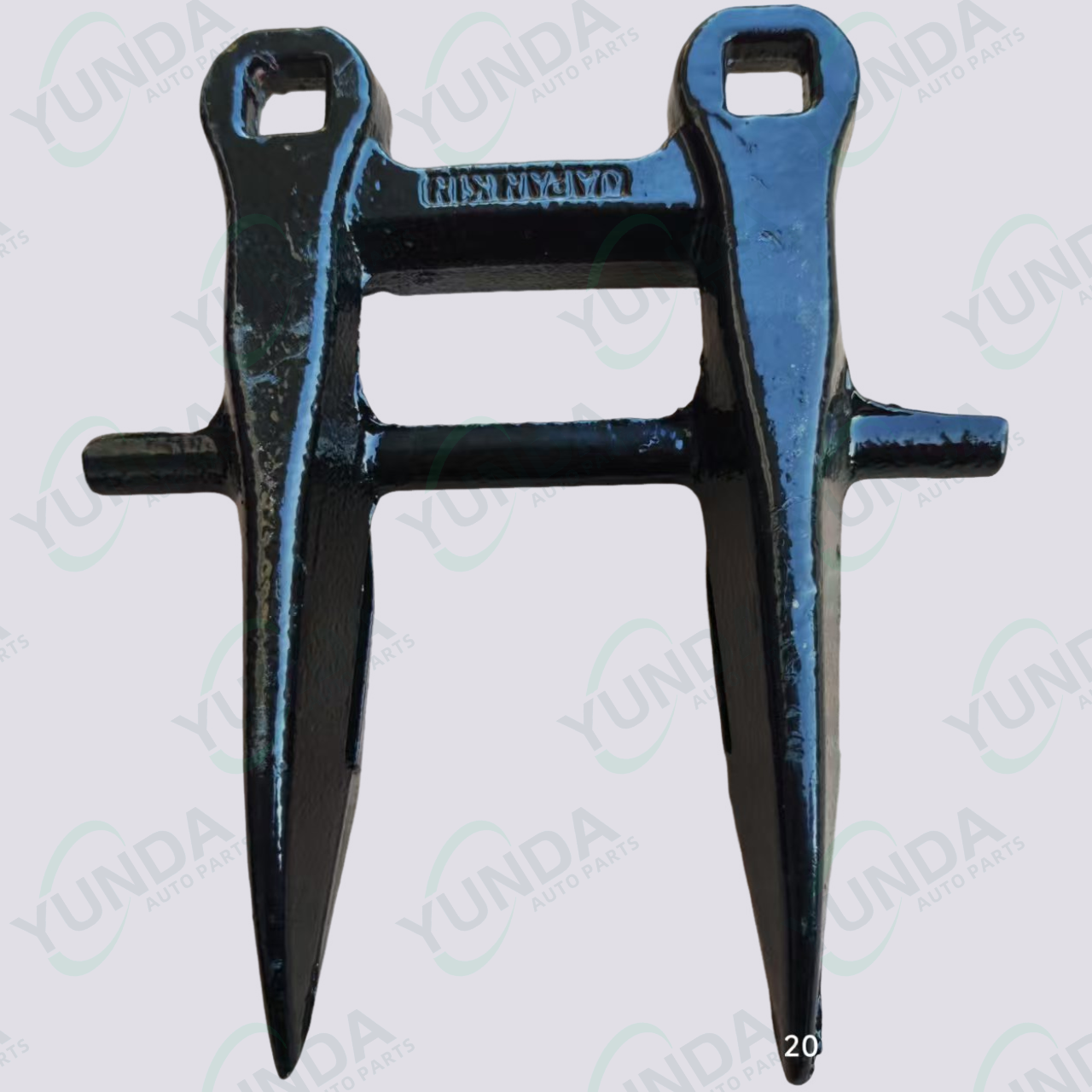

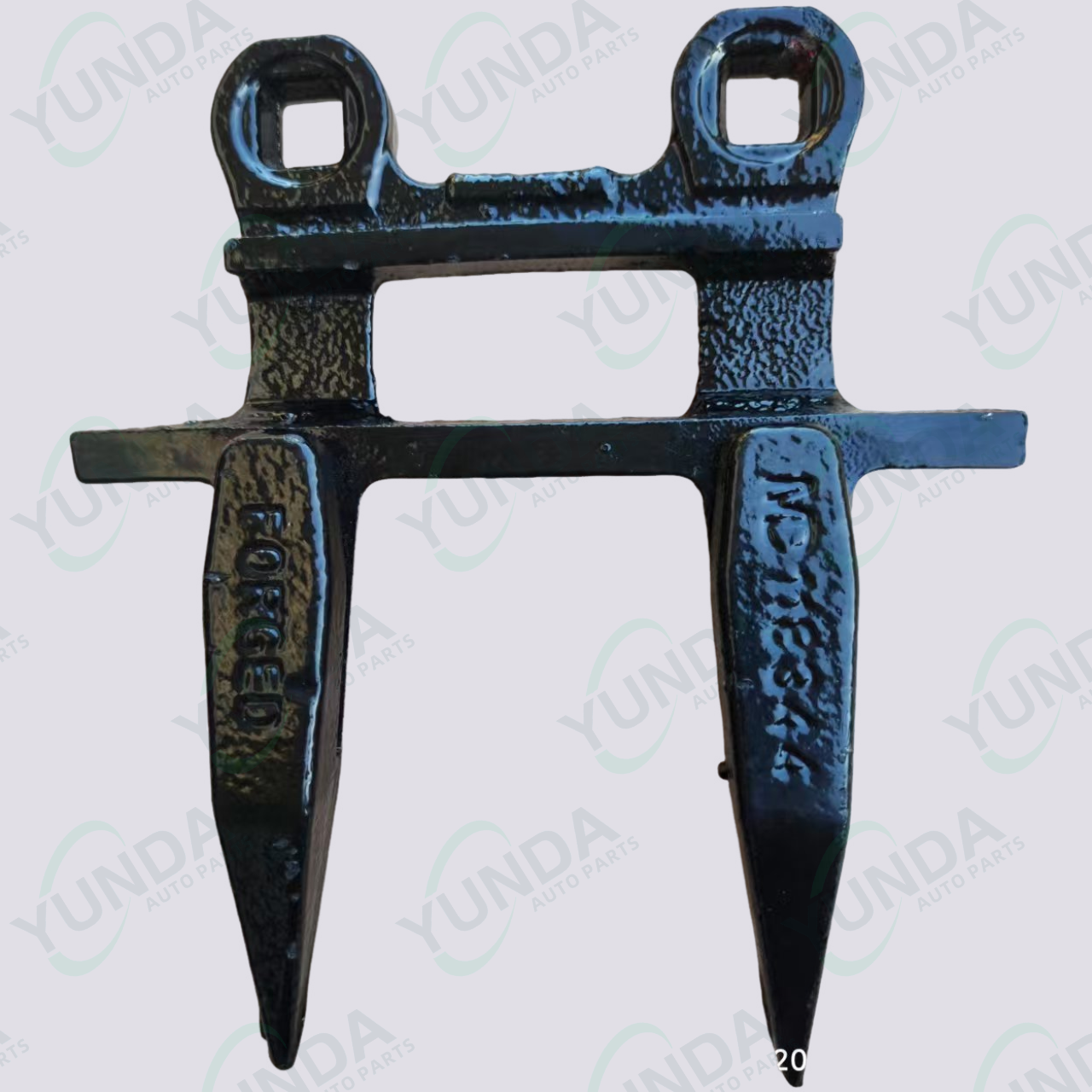

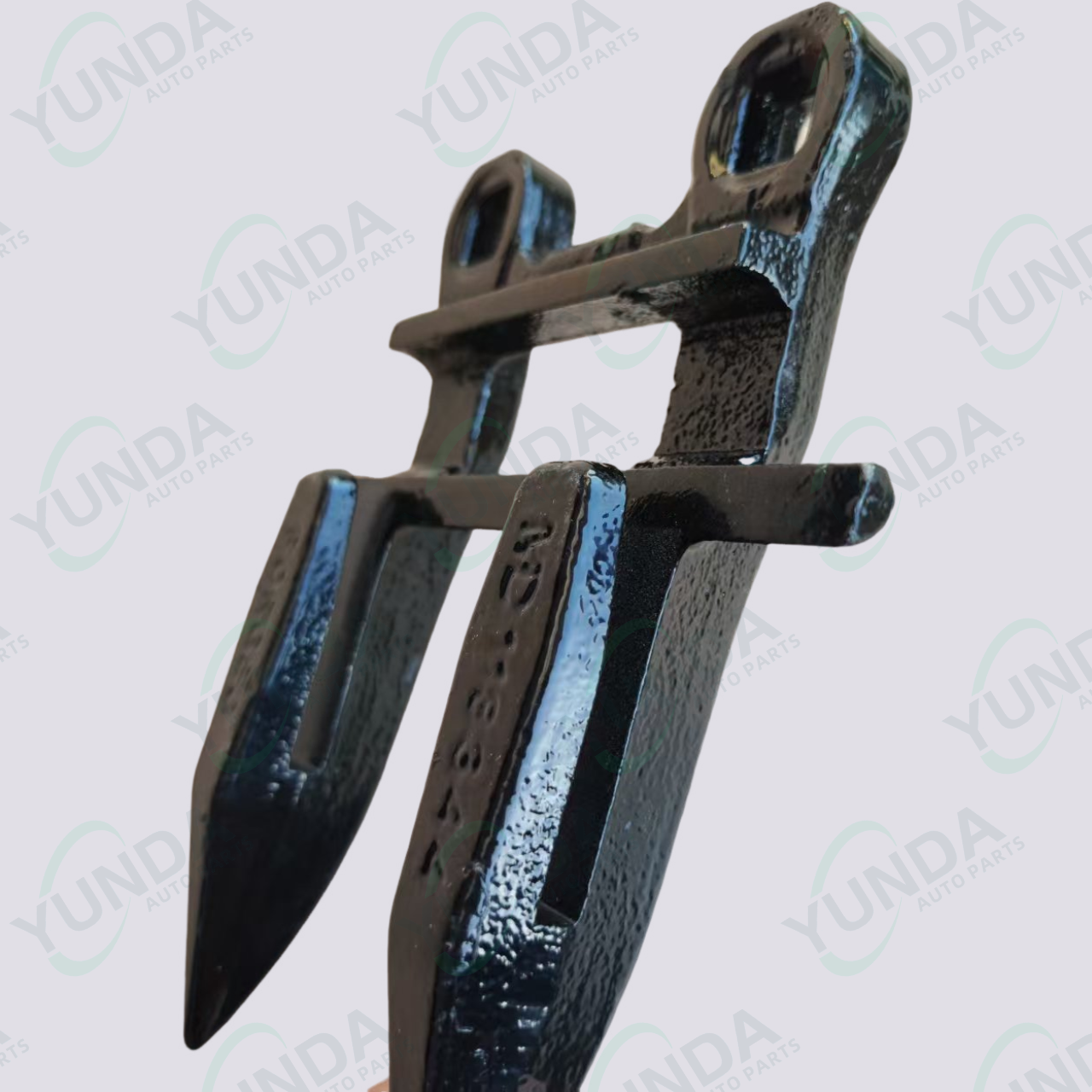

• Part Name: Double-Action Blade Guard / Double-Blade Protector
• Type: Wear part/working component of the cutter head of a lawnmower or shredder.
• Function: This is a key component mounted on the cutter head. Its main functions are:
1. Support and Guidance: Provides support and guidance for the moving blades of the cutter, ensuring smooth and precise reciprocating motion.
2. Fixed Blade Function: The guard itself usually has a fixed blade that works in conjunction with the moving blades to cut the crop like scissors.
3. Separation and Protection: Separates and guides the crop to the cutting area while protecting the moving blades from impacts from hard objects such as stones.
Main Applicable Models
This part number 118344 is primarily applicable to NEW HOLLAND’s “Discbine” series rotary shredders and some “Haybine” series shredder flatteners.
The following is a list of specific applicable models (including but not limited to):
1. Discbine series rotary tappers:
This is the primary application model for this blade guard. Discbine uses a rotary tapping table, but this blade guard is used on the fixed blade shank at the bottom.
• NEW HOLLAND Discbine 1411
• NEW HOLLAND Discbine 1412
• NEW HOLLAND Discbine 1421
• NEW HOLLAND Discbine 1422
• NEW HOLLAND Discbine 1431
• NEW HOLLAND Discbine 1432
• NEW HOLLAND Discbine 1441
• NEW HOLLAND Discbine 1442
• NEW HOLLAND Discbine 1461
• NEW HOLLAND Discbine 1462
• NEW HOLLAND Discbine 1481
• NEW HOLLAND Discbine 1482
• NEW HOLLAND Discbine 1499
2. Haybine Series Cutting and Flattening Machines: Some newer Haybine models may also use this part.
• NEW HOLLAND Haybine 411
• NEW HOLLAND Haybine 412
• NEW HOLLAND Haybine 414
• NEW HOLLAND Haybine 416
• NEW HOLLAND Haybine 418
• NEW HOLLAND Haybine 422
• NEW HOLLAND Haybine 424
3. Earlier “Sicklebar” header models: Some older models using traditional reciprocating cutters may also be suitable.
• NEW HOLLAND 450 (Reciprocating Lawn Mower)
• NEW HOLLAND 455 (Reciprocating Lawn Mower)
• NEW HOLLAND 462 (Dry Mower)
• NEW HOLLAND 468 (Dry Mower)
• NEW HOLLAND 472 (Dry Mower)
• NEW HOLLAND 488 (Dry Mower)
• NEW HOLLAND 1400 (Early Three-Stage Mower Model)
