Description

Product Data

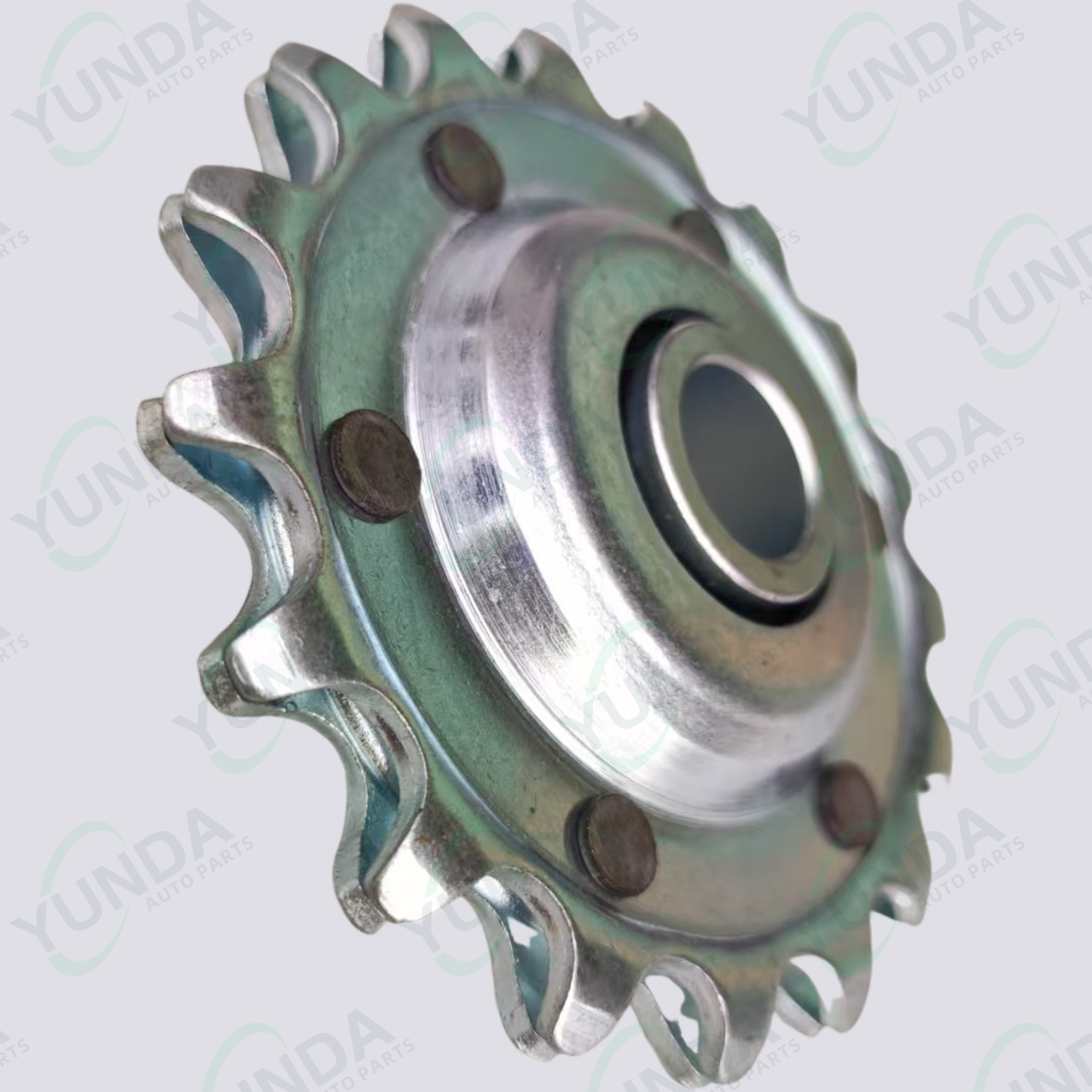

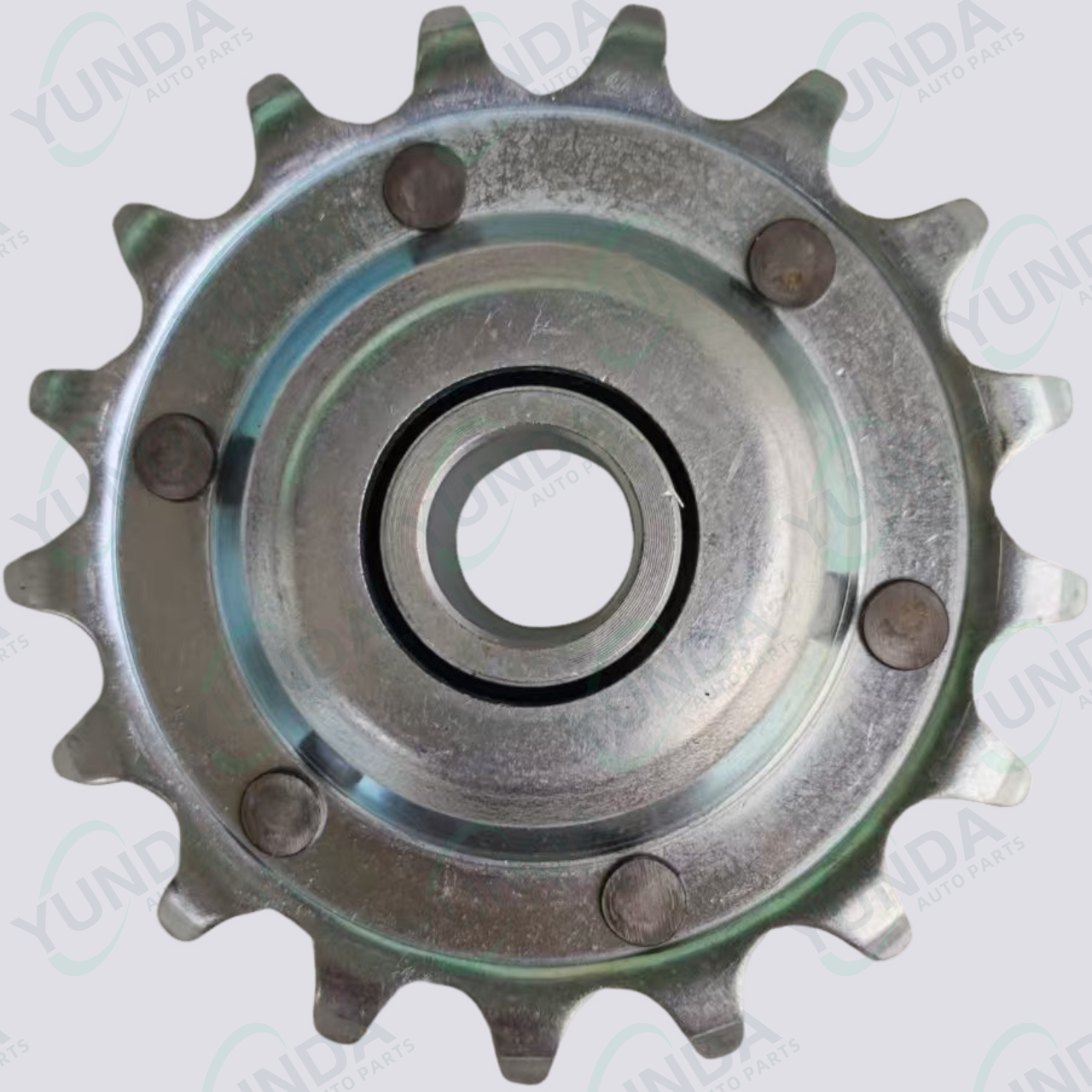

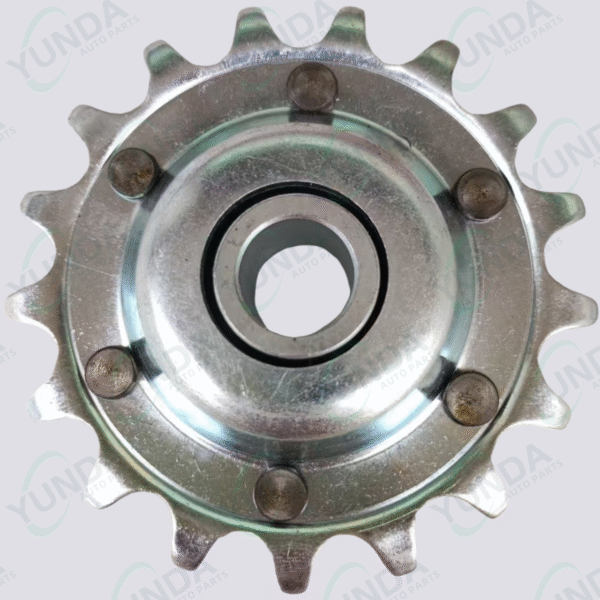

• Part Name: Gear with Bearing Z17 – Small Shaft Housing
◦ This description generally refers to a drive gear assembly inside the “small shaft housing” or “small grain box” of a combine harvester, particularly the threshing and separation system. This assembly, consisting of gears and bearings, is a key component in power transmission.
• Part Number: 103244
◦ This is an official Case IH part number and must be included when ordering to ensure accuracy.
• Assembly Location: Typically located in the side transmission housing of the threshing or cleaning system of a combine harvester.
• Primary Function: Transmits power to drive the threshing drum, straw shaker, or other related components.

Applicable Models
This part (103244) is primarily suitable for the following Case IH combine models:
Axial Flow Combine Series:
• Case IH 2388
• Case IH 2366
• Case IH 2166
