Description
Part Number: 9576844

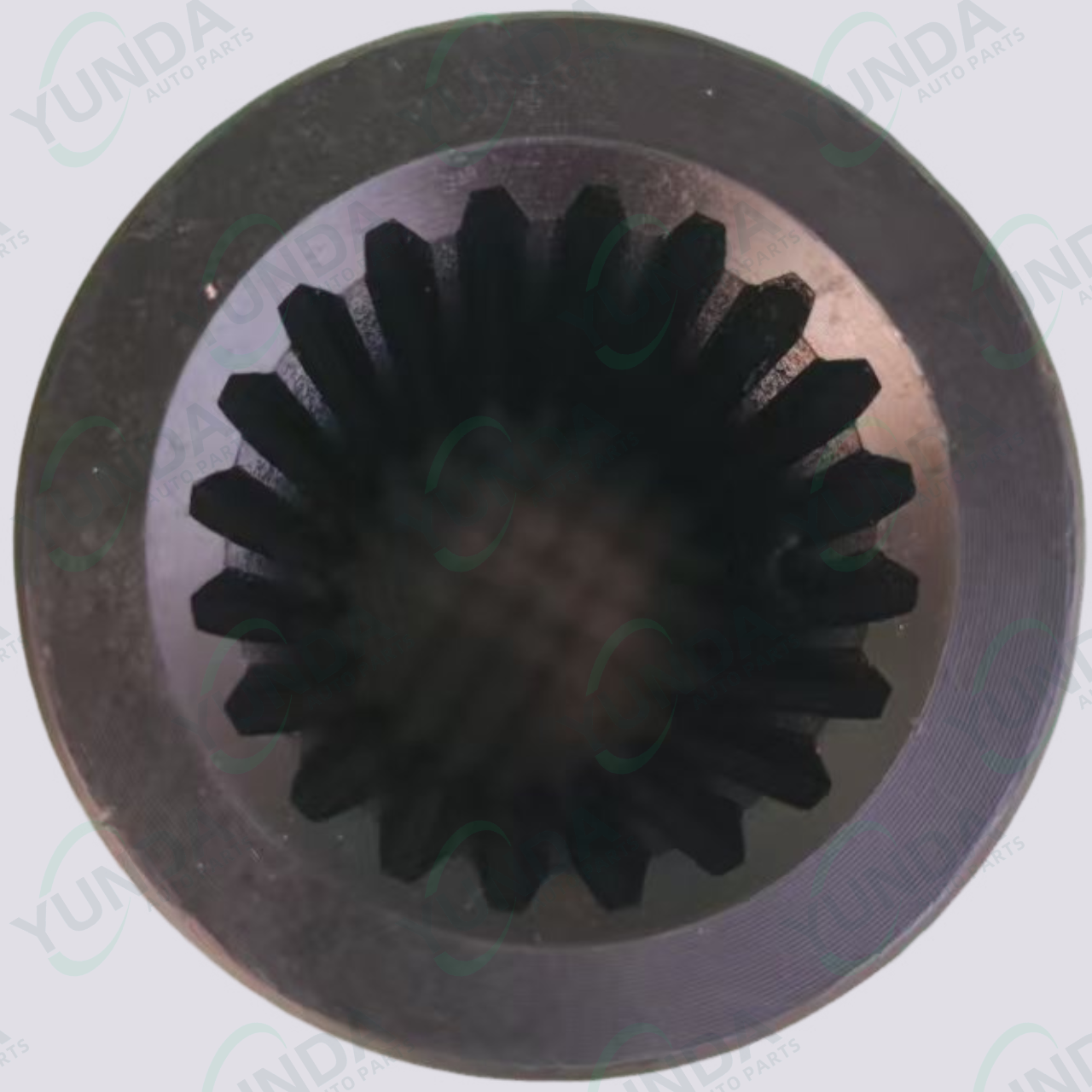

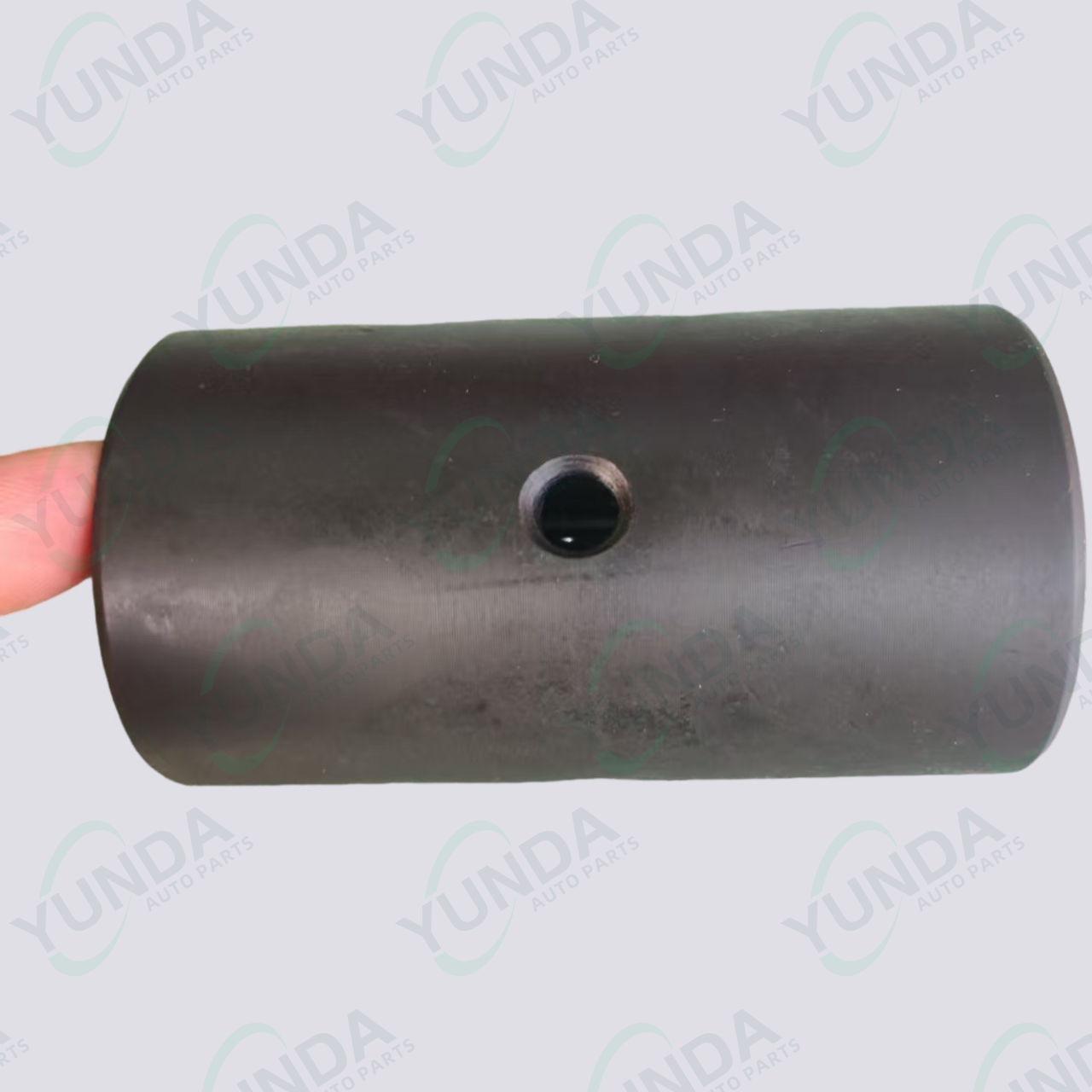

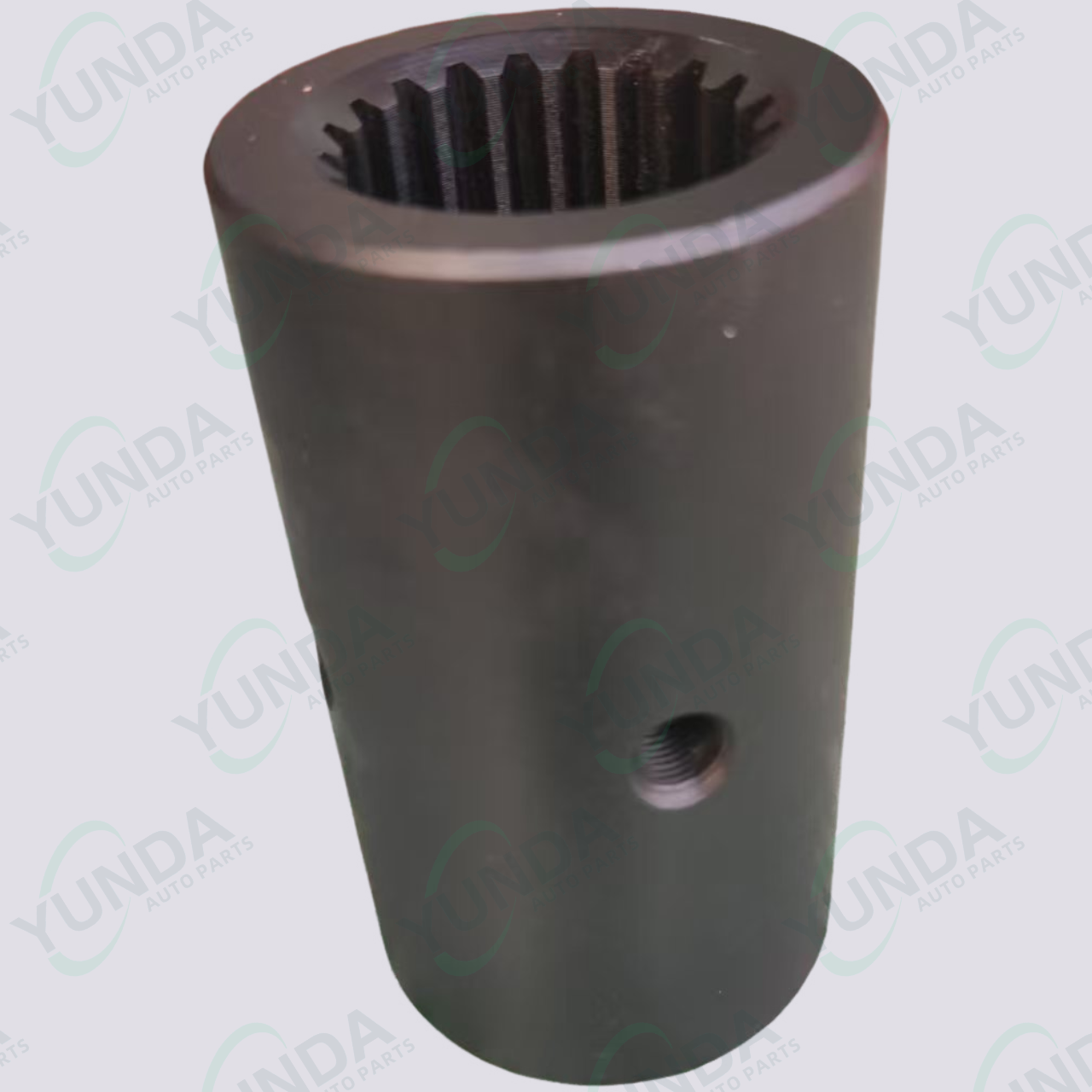

• Product Type: Spline Bushing / Spline Sleeve
• Function Description: This bushing is typically used to connect two splined shafts, serving to transmit torque, buffer, align, and protect expensive splined shafts from wear. When the bushing wears out, only the bushing needs to be replaced, rather than the entire shaft, significantly reducing maintenance costs.
• Common Installation Locations:
◦ Connection between steering column and steering gear
◦ Connection of PTO power take-off shaft
◦ Connection between drive shafts
◦ Other transmission components requiring spline connections and allowing for a certain degree of angular misalignment
Main Applicable Vehicle Models: This part number is very common and applies to a large number of tractor models produced in New Holland over the past few decades. Here are some of the main applicable series and specific models (please note that this list is not exhaustive, but covers the vast majority of cases):
1. Tractor Series
• Boomer Compact Tractor Series:
◦ Boomer 20 / 25 / 30 / 35 / 40 / 45 / 50 (series)
◦ (e.g., Boomer 2030, Boomer 3040, Boomer 4050, etc.)
• TD / TDD Series:
◦ TD5010, TDD5010
• TL Series:
◦ TL100, TL100A, TL80, TL80A, TL90, TL90A
• TS Series:
◦ TS100, TS110, TS115, TS125, TS135, TS6.125, TS6.135
• T6000 / T7000 Series:
◦ T6010, T6020, T6030, T6050, T6070, T6080
◦ T7030, T7040, T7050, T7060, T7070, T7080
• T8000 Series:
◦ T8040, T8050, T8060, T8070, T8080
• Other Classic Models:
◦ TM120, TM130, TM140, TM150, TM155, TM165, TM175, TM190
◦ T6010, T6020, T6030
◦ T9040, T9050, T9060, T9070, T9080
◦ TX32, TX34, TX36, TX38, TX40, TX52, TX56, TX63, TX66, TX68
2. Combine Harvester Series
• CX Series Combine Harvesters:
◦ CX8060, CX8070, CX8080, CX8090, CX8070, CX8120, etc.
• CR Series Combine Harvesters:
◦ Some earlier models may also use this part.
