Description

Definition

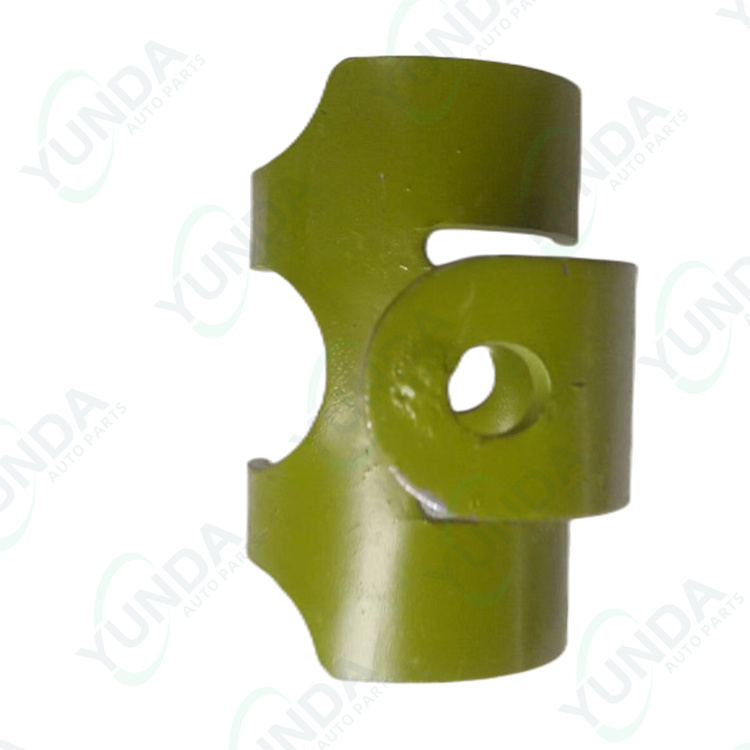

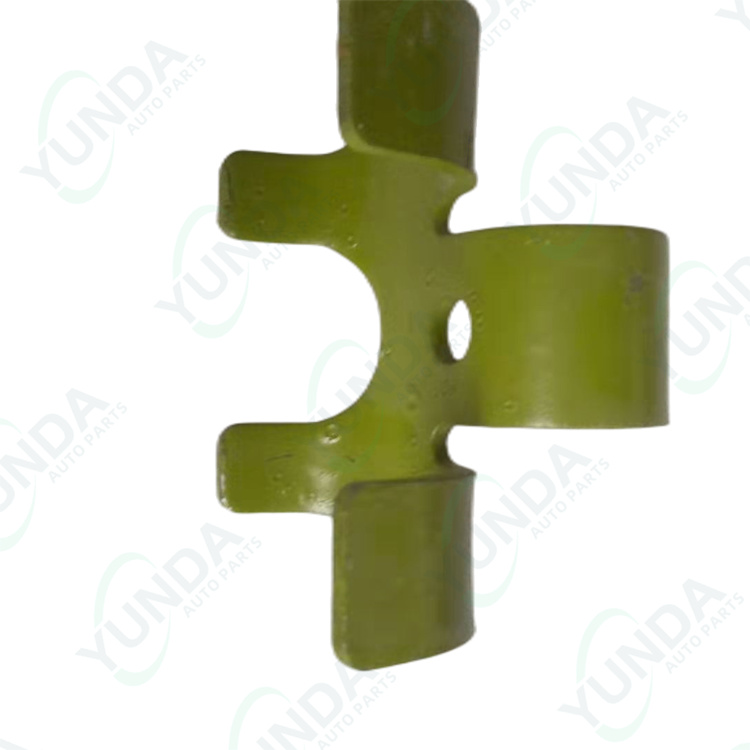

The pick-up bracket 0008072641 is a structural support component and a genuine OEM part for the header of Claas balers. It serves as a critical mounting point, providing a rigid and stable frame to which the pick-up mechanism and its various tines are attached.

Function and Role

This bracket’s primary role is to ensure the proper positioning and reliable operation of the baler’s crop collection system. Its specific functions are:

• Structural Foundation: The bracket acts as a solid backbone for the entire pick-up assembly. It is engineered to withstand significant mechanical stresses and vibrations encountered during field operation.

• Precise Component Alignment: It ensures the pick-up reel, tine bars, and other related parts maintain their correct geometric alignment. This precise alignment is crucial for efficient crop flow into the baler and for preventing crop loss or blockages at the intake.

• Force Transmission: The bracket absorbs and distributes the forces generated as the pick-up tines interact with the crop mat and the ground. This protects more delicate components from impact damage and reduces fatigue on the overall machine structure.
