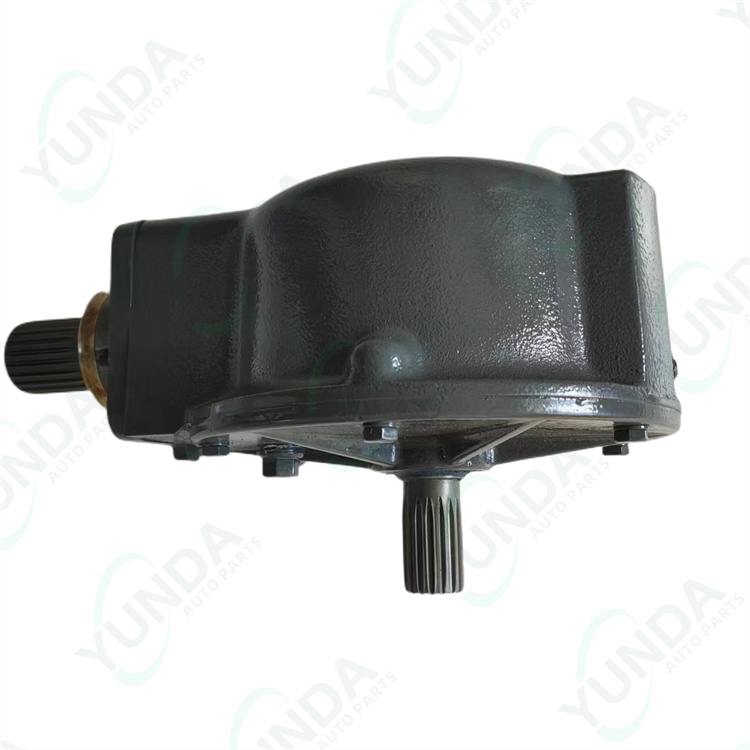

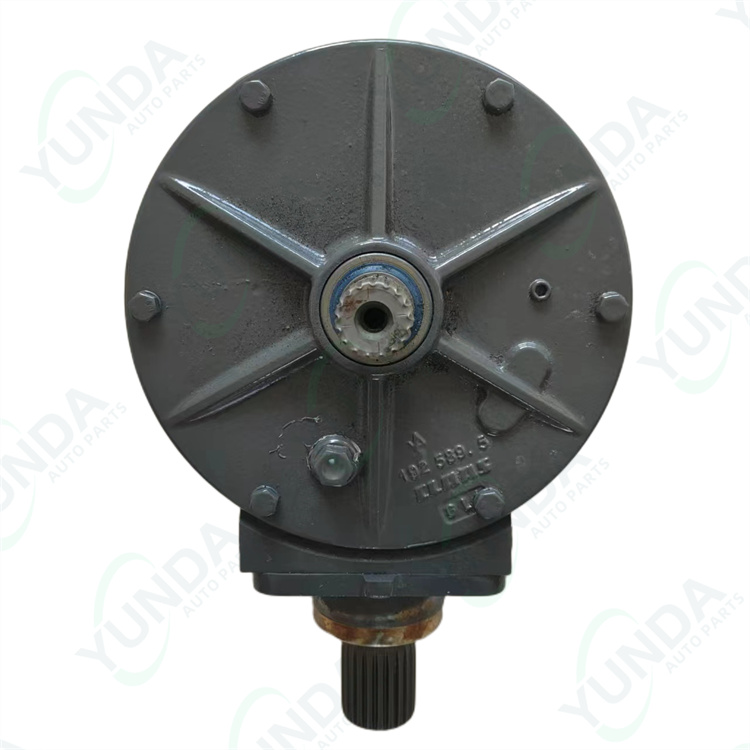

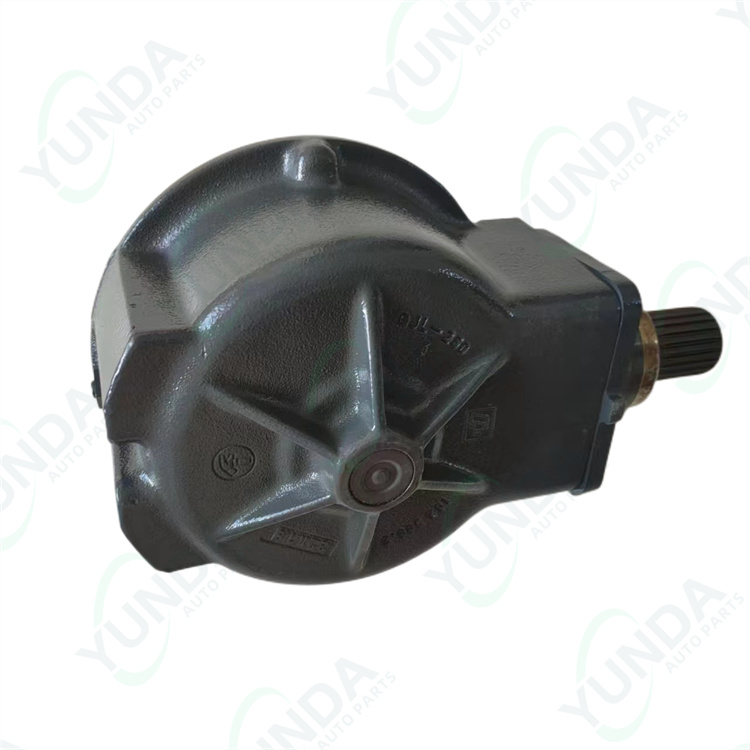

The Wobble Box 643656 for Claas is a specialized drive component specifically engineered for the header attachments on Claas forage harvesters. Identified by part number 643656, it is a self-contained, sealed gearbox assembly mounted at the base of the cutterbar. Its primary function is to transform the incoming rotational power from the machine into the oscillating motion required for the reciprocating knives, serving as the critical power transfer point between the harvester and its cutting header.
Function and Role
-
Motion Conversion: The core function of the wobble box is to convert the continuous rotary motion provided by the harvester’s driveline into a high-speed, back-and-forth linear motion. This is achieved internally via an eccentric mechanism or a crankshaft that drives connecting rods.
-
Powering the Cutterbar: It directly actuates the knife guards and reciprocating knives across the entire width of the header. This creates the scissor-like cutting action that cleanly severs crops at their base.
-
Amplifying and Transmitting Force: The internal gearing is designed to handle and transmit high levels of torque, providing the necessary power to the cutterbar for efficient cutting in dense and challenging crop conditions, ensuring reliable and consistent operation.
